Product Overview

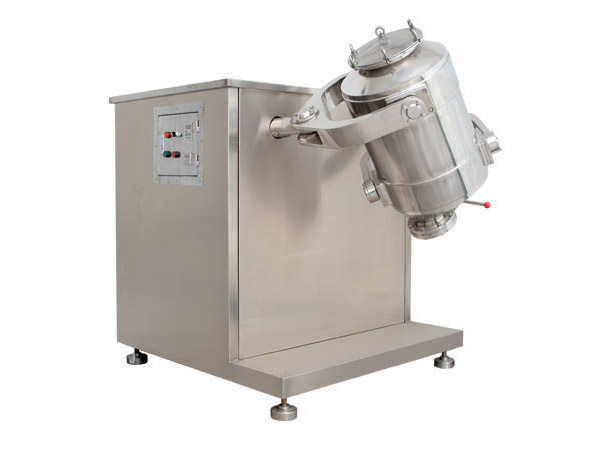

The machine is composed of an engine seat, a variable frequency brake motor, a spindle, a rotary connecting rod, and a cylinder. The cylinder of the loading material undergoes parallel movement and composite movements such as rock and roll under the driving of the active shaft, which promotes the material to undergo three-dimensional composite movements along the cylinder in the circumferential, radial, and axial directions, thereby achieving the mutual flow, diffusion, and doping of various materials, and achieving the goal of high uniform mixing. By utilizing unique three-dimensional oscillation, translational transport, and rock principles, a strong alternating pulse motion is generated, continuously pushing the mixed material. The generated vortex has a varying energy gradient, resulting in excellent mixing effects. It has the advantages of smooth operation, low noise, high loading coefficient, and short mixing time.
Product application and characteristics
This machine is widely used for mixing dry powder materials in industries such as pharmaceuticals, chemicals, and food. It can also quickly and evenly mix several materials with different densities and particle sizes. Featuring a unique driven shaft servo structure, the entire machine runs smoothly, reliably, and with low noise.
The equipment does not require a foundation, is easy to install and maintain, and has a long service life.
Good mixing effect, short mixing time, and a mixing uniformity of over 99.5%.
The height of the turning space is low.
The eccentric design of the discharge cone of the mixing barrel ensures that there are no blind spots for discharge and is easy to clean.
Specification parameters
1. The effective loading rate of the container reaches 80%, the mixing time is short, and the efficiency is high (ordinary mixers only have 40%);
2. The machine has a low height and no special requirements for the factory building, reducing infrastructure investment;
3. The mixing bucket and the transmission part of the machine body can be installed on the partition wall, which is convenient for meeting GMP requirements;
4. Various shapes of mixing containers can be placed inside the mixing cylinder for easy mixing, making it convenient to use;
5. Can achieve stepless speed regulation, easy to load and unload;
6. Long lifespan, low noise;
7. It can achieve vacuum feeding or elevator feeding for users.

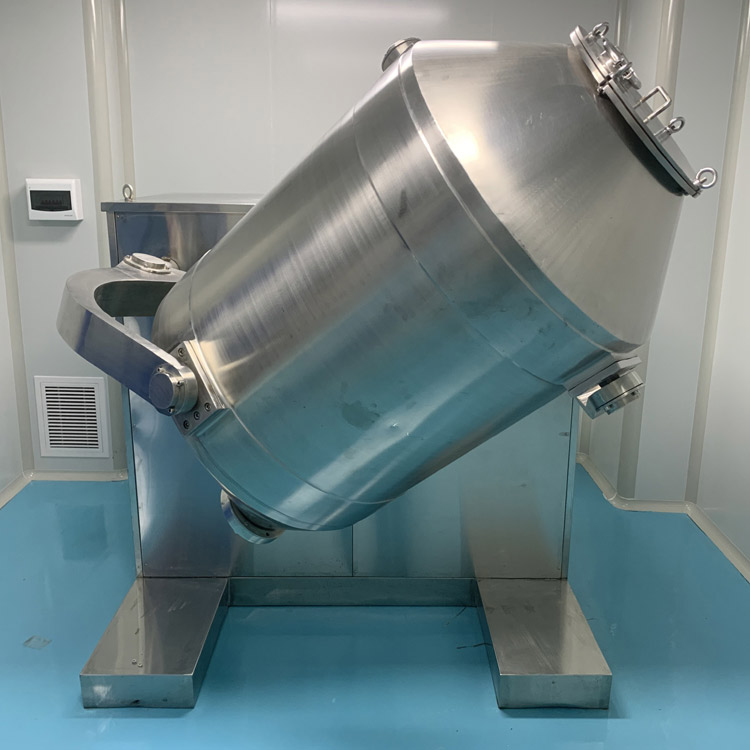

Case diagram
