Product Overview
The two-dimensional mixer consists of three main parts: a rotary drum, a swing frame, and a machine frame. The drum is mounted on the swing frame, supported by four rollers and axially positioned by two gear wheels. Among the four supporting rollers, two transmission wheels are dragged by the rotating power system to rotate the drum. The swing frame is driven by a set of crank swing rod mechanisms, which are mounted on the frame. The swing frame is supported on the frame by bearing components, and the mixed material rotates, flips, and mixes with the drum while undergoing left and right back and forth mixing movements with the drum's swing. Under the combined action of these two movements, the material is fully mixed in a short period of time.
Product features and applications
Widely used for mixing powder and granular materials.
characteristic:
1. The second rotation adopts a cycloidal pinwheel reducer or a worm gear reducer. Compared with traditional mixers, it has no material accumulation at the bottom, no pollution, easy flushing, and truly meets GMP requirements.
2. During operation, under the dual action of the rotating mechanism and the swinging mechanism, the loading cylinder rotates while also undergoing swinging motion, allowing the materials inside the cylinder to be fully mixed.
3. The equipment can be equipped with an automatic vacuum feeding machine and interface, which facilitates feeding and shortens operation time. High efficiency and low cost.
4. Two dimensional motion mixer: simple structure, low failure rate, stable operation, safe operation, no noise, easy to clean, in compliance with GMP requirements.
5. The volume is much smaller than the normal standard, occupies less space, and has powerful functions.

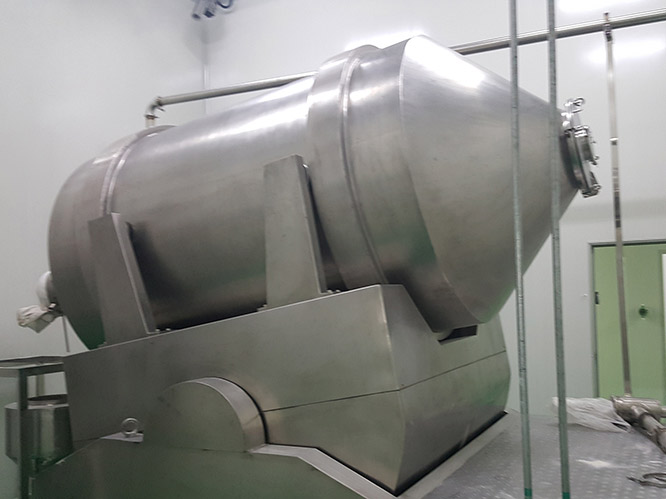

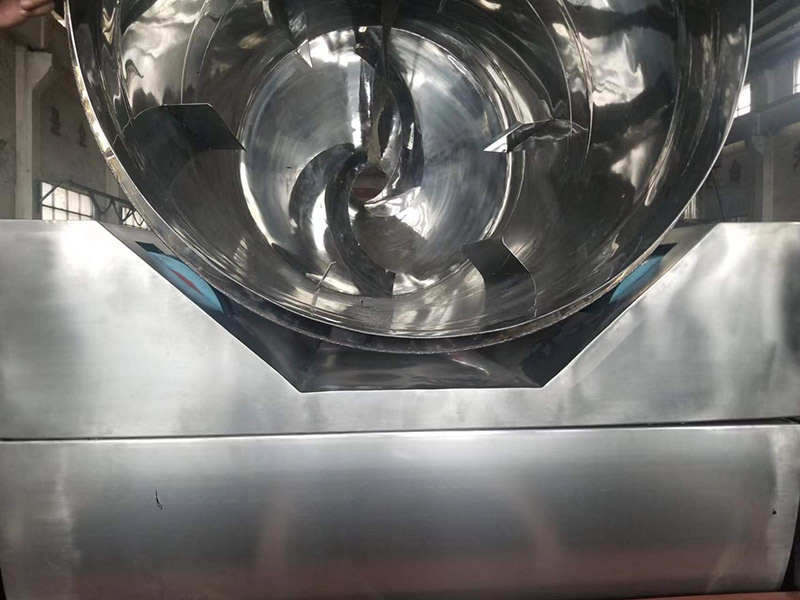

Case diagram
